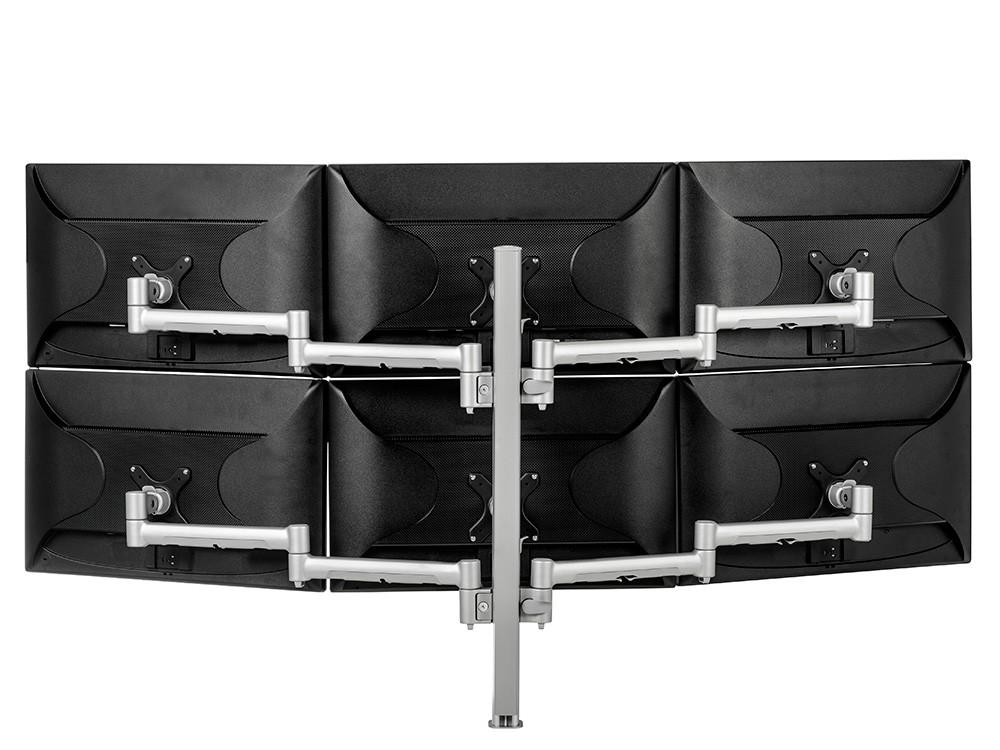

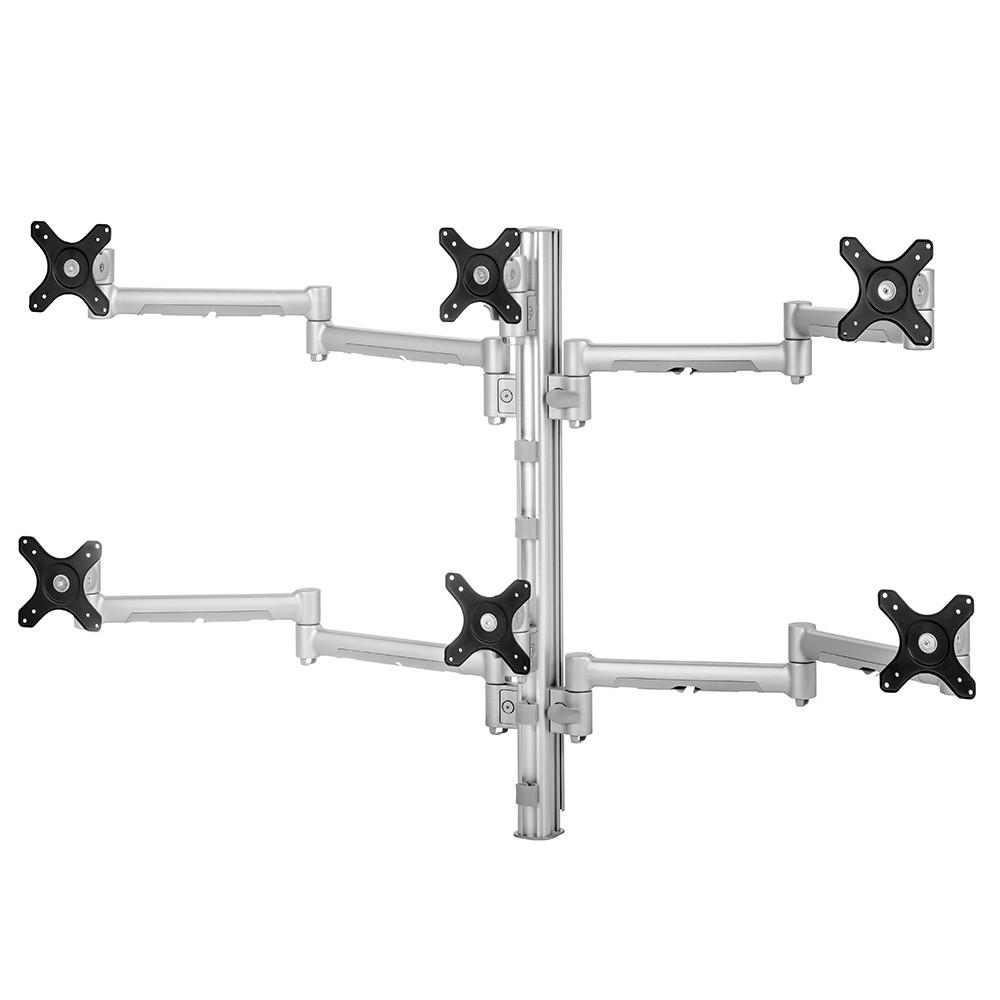

SYSTEMA AWMS-6-13714-H-S desk mount for 6 displays. A six-arm combination attached to a 750mm post. Display height, optimal viewing angle and orientation can be set to individual requirements. Built from lightweight and yet durable aluminium, the mount can be easily recycled at the end of its life.
VESA 75x75mm & 100x100mm. Display height adjustment, tilt, pan, portrait to landscape rotation.
Desk clamp mounting option included.
This solution is part of the SYSTEMA modular range and consists of the following individual components:
1 x AWM-P75-S post
4 x AWM-A71-S display arms
2 x AWM-A13-S display arm
1 x AWM-FH-S desk clamp (heavy duty F-Clamp)
| Weight Capacity | Flat screen monitors: maximum load up to 9 kg per monitor Curved screen monitors: maximum load up to 8 kg per monitor | ||
| LCD Size | up to 24” | ||
| Maximum Notebook Size | 18" | ||
| Tilt | 45° upward and 25° downward | ||
| Screen Rotation | Landscape to portrait | ||
| Pan | 90° left and 90° right | ||
| Maximum Arm Reach | Check specification document | ||
| Display Compatibility | 75x75, 100x100 | ||
| Desk Mounting Type | Desk clamp | ||
| Material | Steel, Aluminium and Plastic | ||
| Maximum Desk Thickness | 68 mm |
 |
