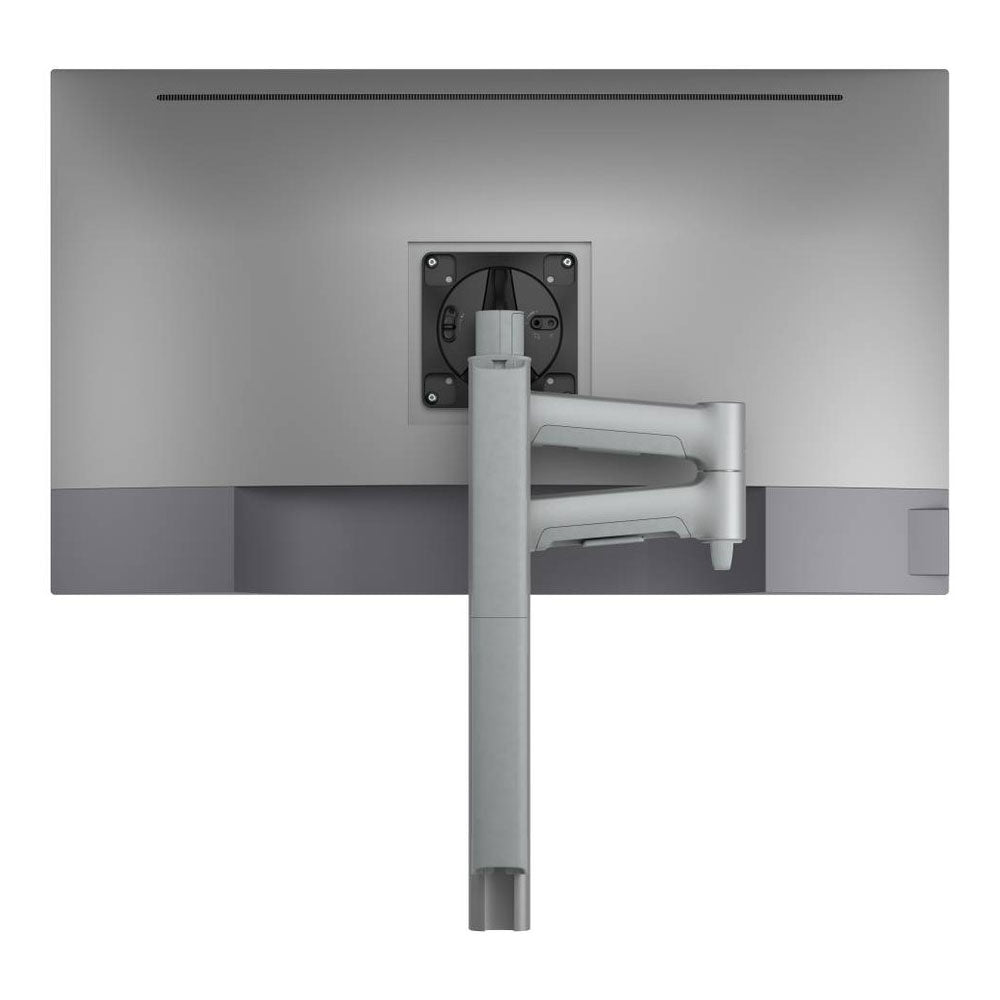

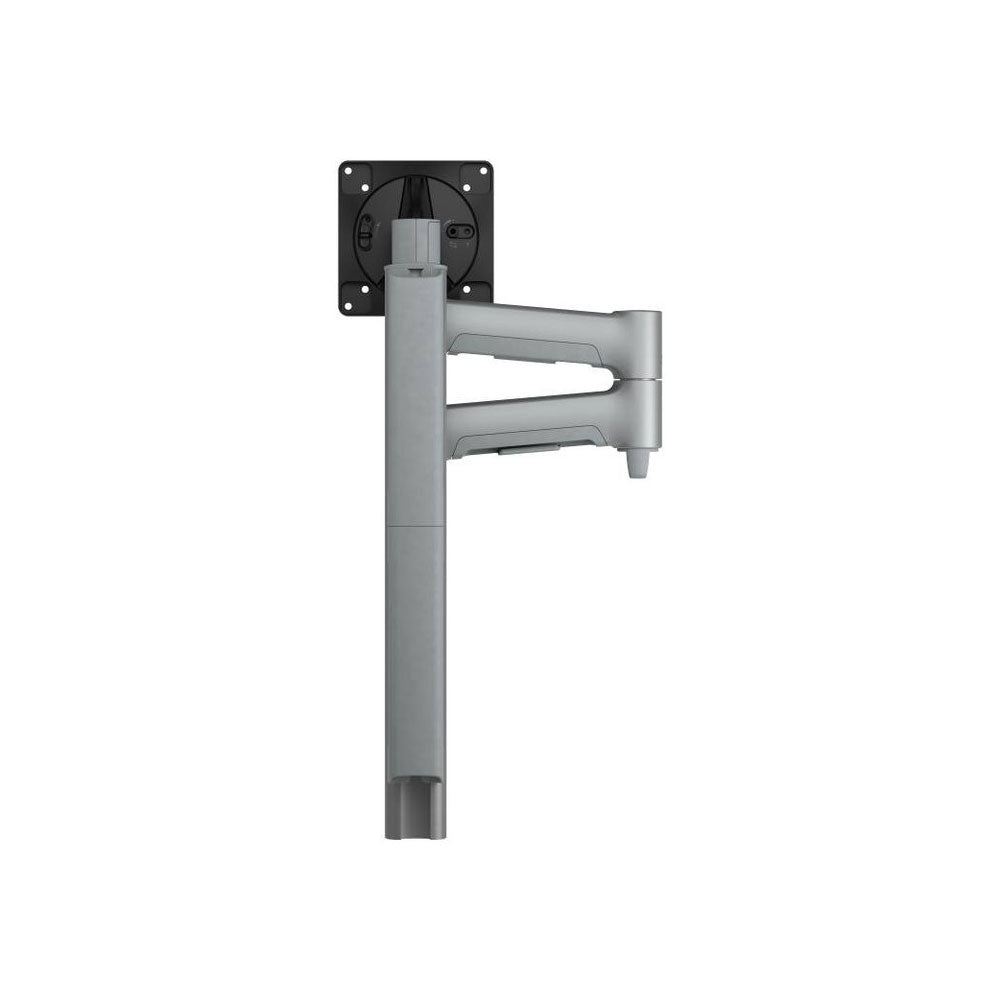

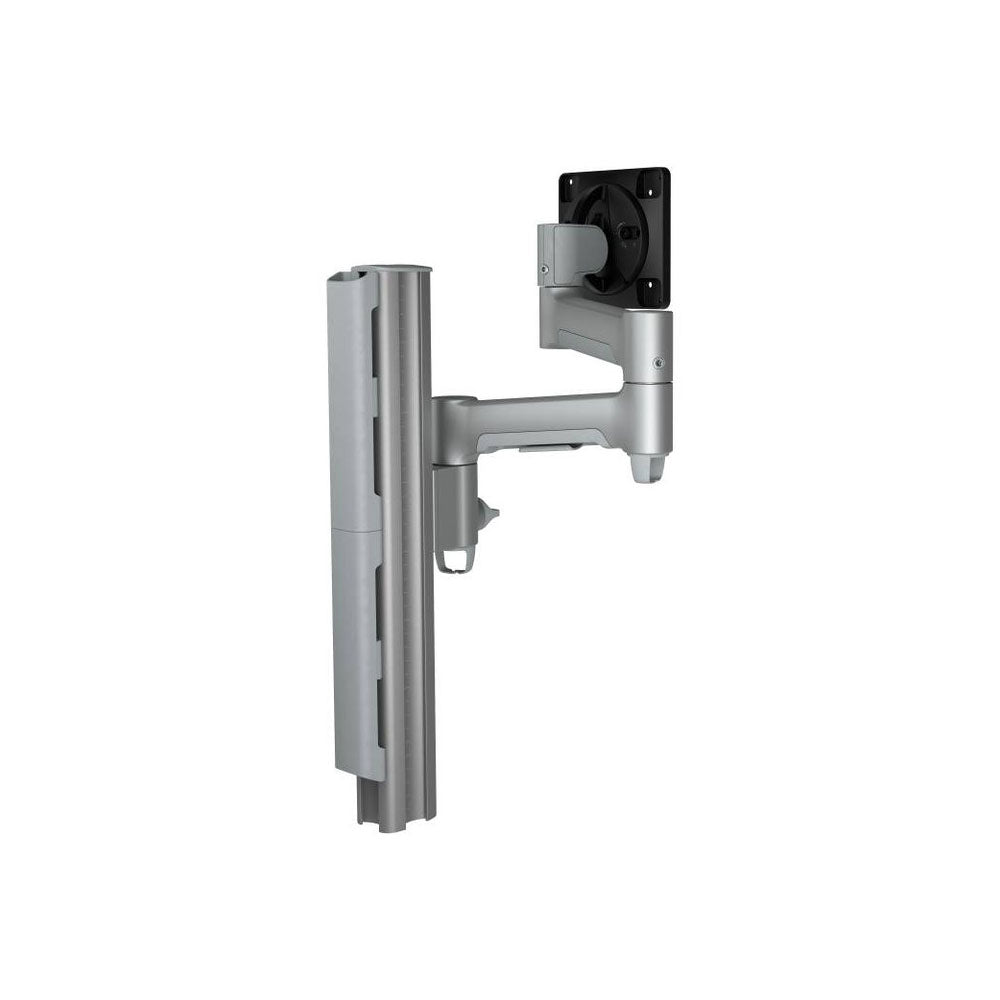

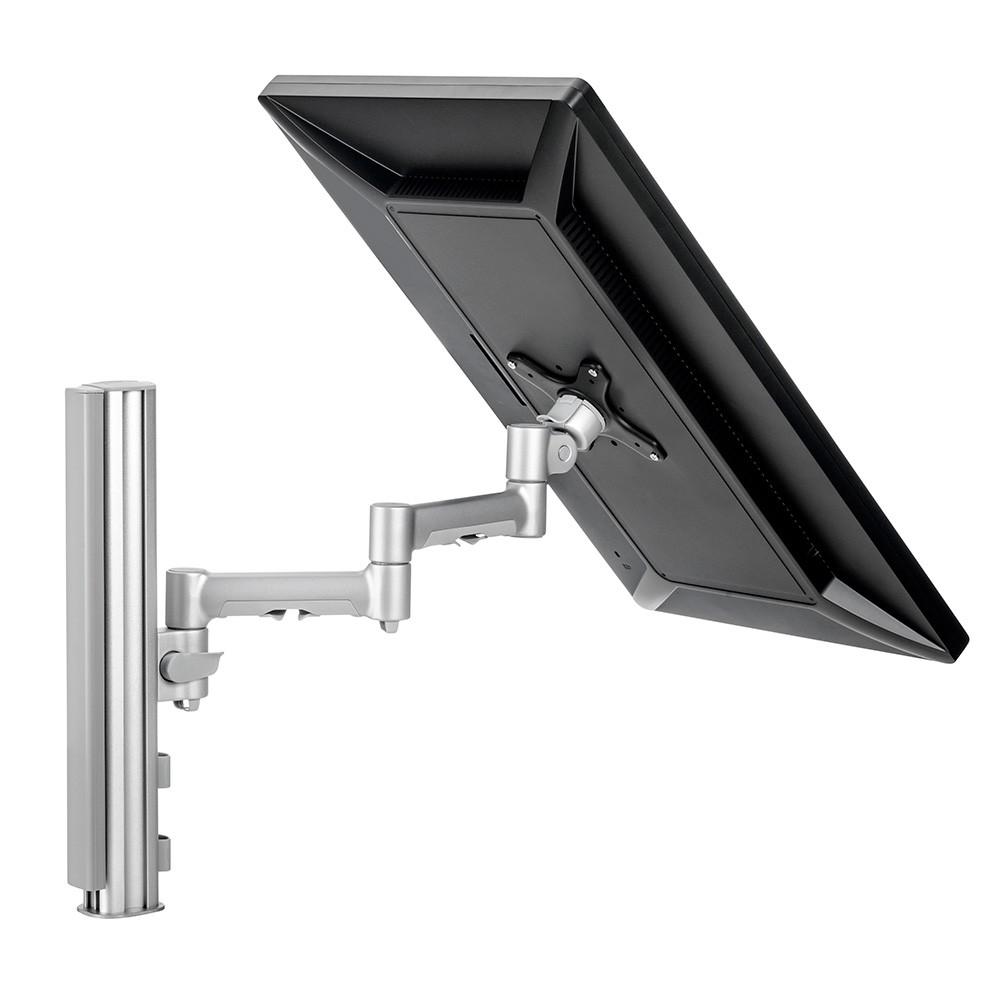

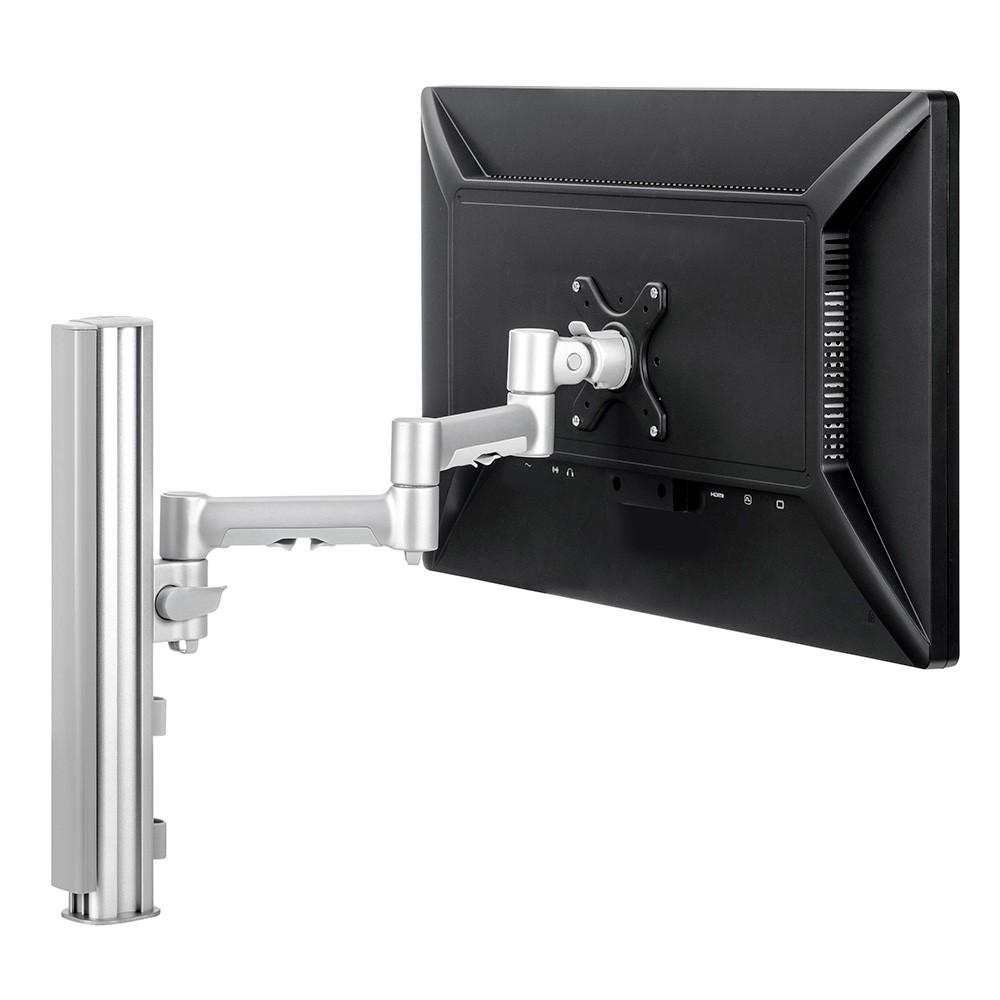

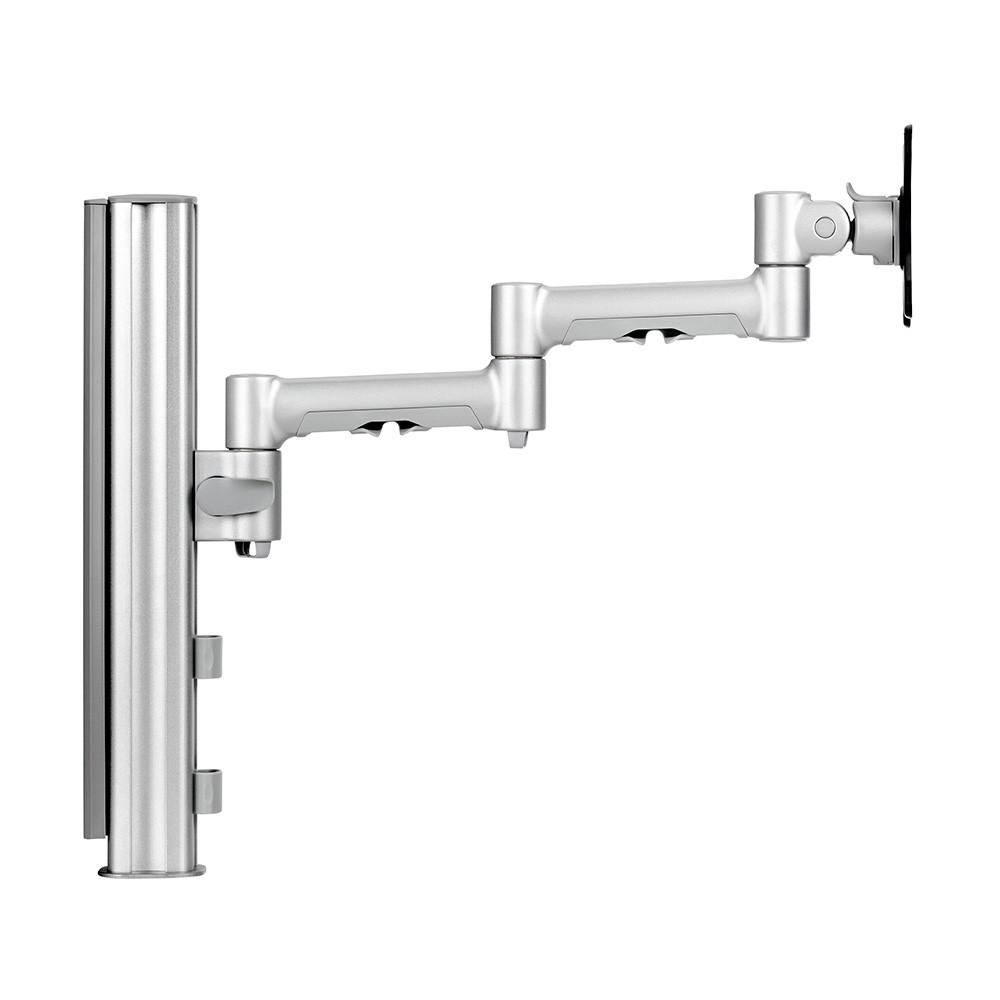

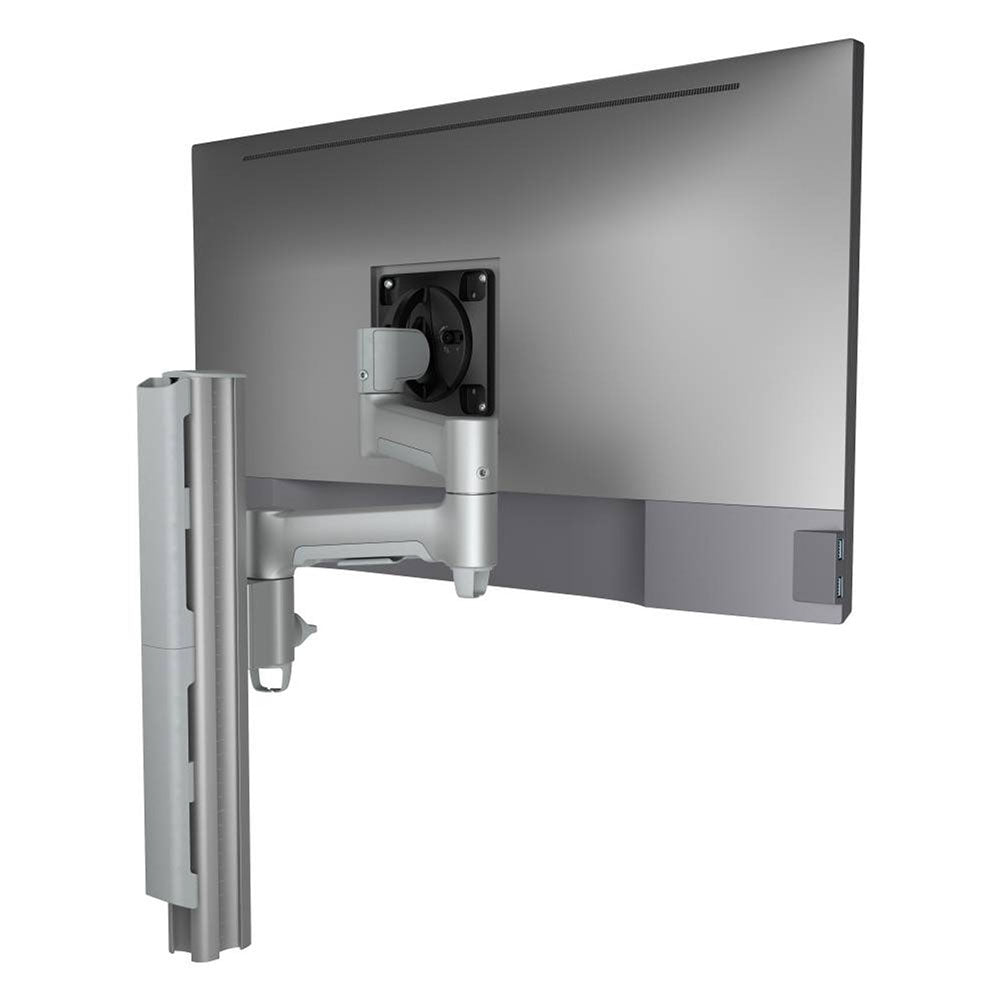

Systema AWMS-4640-F-S Single Monitor Arm





SYSTEMA range single display desk mount. 460mm articulated arm on 400mm post. Supports displays up to 12kg. VESA 75x75mm & 100x100mm.

Display height adjustment, tilt, pan and portrait to landscape rotation.

Ideal for: Displays up to 34”. The 460mm display arm can be installed in any of the four channels of the 400mm post. Perfect for Activity-based Workplaces and Shared Environments. Touch screen compatible.

Desk clamp mounting included. Advanced cable management

This solution is part of the SYSTEMA modular range and consists of the following individual components:

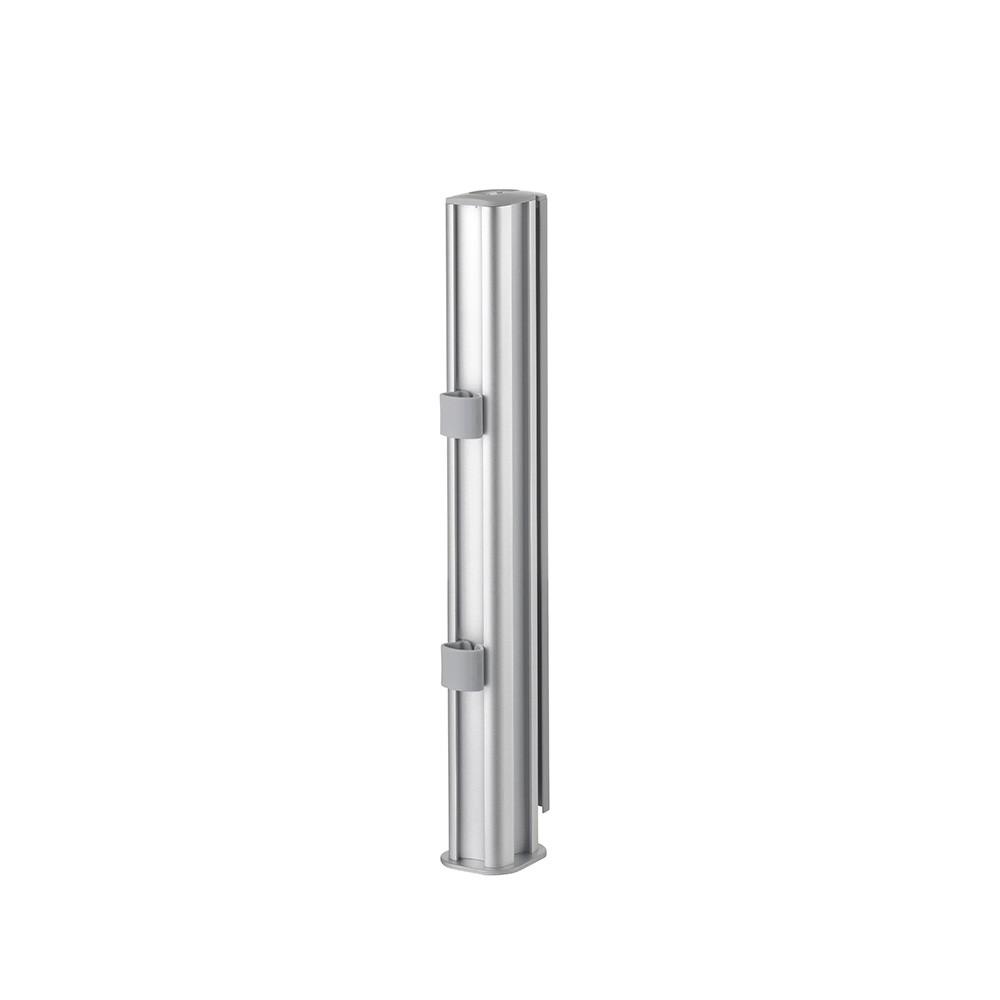

1 x AWM-P40-S post
1 x AWM-A46-S display arm
1 x
AWM-FF-S desk clamp (F-Clamp)

Features
  • Three points of articulation enable full-motion adjustment
  • Supports a wide range of displays up to 12 kg in weight
  • VESA mounting hole pattern: 75 x 75 and 100 x 100
  • 8mm hardened steel Desk Clamp mounting option included
  • Display tilt, pan and landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty

Specifications
  Weight Capacity   12 kg
  Tilt   45° upward and 25° downward
  Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   458 mm
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Desk clamp
  Material   Steel, Aluminium and Plastic



Downloads
Download Product Info
Product Info
Download User Manual
User Manual
Download Illustrations
Illustrations
